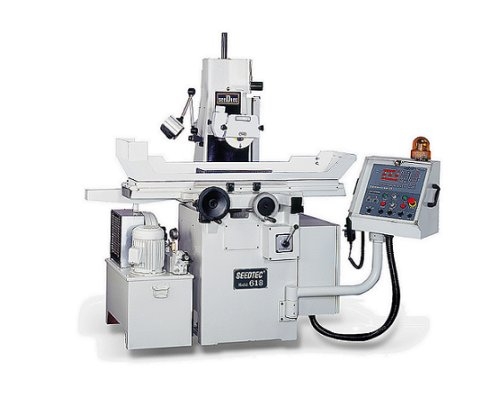

YSG-618 TS Surface Grinder Information

Professional Design - Top Performance

This Precision surface grinder has been developed & designed in the UK to European standards and requirements. It offers a cost effective solution to your precision toolroom grinding needs. Built with superior rigid construction for greater stock removal and accuracy. The machine carries a two year parts & labour warranty with a planned maintenance service contract.

Its robust construction, low friction saddle with wide support, ensures high quality and a rigid stable workstation. The vertical slide is constructed using highly sensitive, linear bearing guideways. They support a Heavy Duty direct drive ball bearing spindle.

The machine incorporates a speed control auto reversing saddle, rapid and slow rise and fall with adjustable micron inching.

Controls

  • Instrument quality control panel, ergonomically positioned, and has a touch sensitive operation.
  • The control box is provided with a HPG Hand Pulse Generator hand wheel to increase convenience for grinding and workpiece set up.
  • NC controlled employing a fully digitized servo system.
  • Built in controls for powered magnetic chuck and coolant when fitted.
Controls

YSG TS Model Surface Grinder

Standard Equipment -

  • Vertical feed driven by servo motor.
  • Crossfeed driven by AC Motor.
  • Table driven by hydraulics.
  • Conventional NC Control
  • Microfeed to cross axis.
  • Programmable course and fine downfeed, sparkout and retract capabilities.
  • Magnetic Chuck.
  • Coolant system and Service fittings.

YSG TS Additional Equipment

PG Optidress "E" (NEW) with FACTSTOR 2, 4-Axis digital readout.
- (Including Wheelguard, Coolant modifications, Adaptor plate and fitting to machine)

PG Optidress - not "E" type. (Rebuilt and with 12 months warranty).
- (Including Wheelguard, Coolant modifications, Adaptor plate and fitting to machine)

Heidenhein linear scale feedback Digital Readout (DRO) to both Crossfeed & Downfeed.

Dust extractor DCE Type M15.

Overhead wheel dresser.

Electromagnetic Chuck with variable holding power & automatic demagnetisation.

Machine Specifications

YSG-618 TS Surface Grinder Machine Specifications

YSG TS Small / Medium Model Surface Grinder

Model YSG-618TS YSG-52TS
Table Capacity 150x450mm 200x500mm
Max distance from spindle
centre to table surface
400mm 400mm
Spindle motor 1.2HPx2P 1.5HPx2P
Grinding wheel 180/205x13x31.75 180/205x19x31.75
Weight (approx) 900kgs 1200kgs
Floor space 2110x1300x1980 2110x1500x1980



YSG TS Large Model Surface Grinder

Model YSG-1224TS YSG-1228TS YSG-1632TS YSG-1636TS YSG-1640TS
Table Capacity 300x600mm 300x700mm 400x800mm 400x900mm 400x1000mm
Max distance from spindle
centre to table surface
700mm 700mm 700mm 700mm 700mm
Spindle motor 5HPx4P 5HPx4P 7.5HPx4P 7.5HPx4P 7.5HPx4P
Grinding wheel 305/355x50x127 305/355x50x127 305/355x50x127 305/355x50x127 305/355x50x127
Weight (approx) 3200kgs 3200kgs 4000kgs 4000kgs 42000kgs
Floor space 3240x2500x2092 3240x2500x2092 3300x2780x2092 3350x2780x2092 3400x2780x2092



YSG TS Largest Model Surface Grinder

Model YSG-2040TS YSG-2048TS YSG2060TS YSG-2448TS YSG-2460TS YSG-2480TS
Table Capacity 1000x500 1200x500 1500x500 1200x600mm 1500x600mm 2000x600mm
Max distance from spindle
centre to table surface
700mm 700mm 700mm 700mm 700mm 700mm
Spindle motor 15-40HP/4P 15-40HP/4P 15-40HP/4P 15-40HP/4P 15-40HP/4P 15-40HP/4P
Grinding wheel 406/355x75x127 406/355x75x127 406/355x75x127 406/355x75x127 406/355x75x127 406/355x75x127
Weight (approx) 7200kg 7500kg 8000kg 8500kgs 8950kgs 9850kgs
Floor space 4075x3045x2310 4515x3045x2310 5185x3045x2310 4610x3576x2328 5120x3576x2328 6220x3576x2328



Please contact us for full specifications and brochure.
