EIU Wheelhead - Jones & Shipman 1074 Spares

Item P1 - Wheelhead Lubrication Pump - Please contact us for a Refurbishment service.

The following items are in stock.

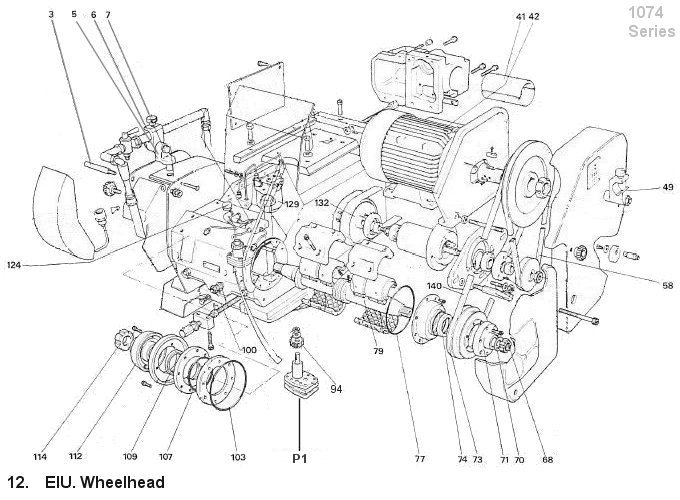

EIU Wheelhead
Item No. Part No. Section
3 33463-352 Pivot Pin Add To Enquiry Basket
5 36267-712 Bracket for Fork Add To Enquiry Basket
6 36231-331 Coolant Fork Add To Enquiry Basket
7 43536-602 Fork Bolt Add To Enquiry Basket
41 34348-104 Bush Add To Enquiry Basket
42 - Wheelhead Drive Motor Add To Enquiry Basket
49 36231-331 Coolant Fork Add To Enquiry Basket
58 A38 Internal Vee Belt Add To Enquiry Basket
68 34274-501 Lock Nut Add To Enquiry Basket
70 34133-117 Tab Washer Add To Enquiry Basket
71 34772-135 Flange Boss Add To Enquiry Basket
73 A48 External Belt Add To Enquiry Basket
74 25142-2501 Oil Seal Add To Enquiry Basket
77 25122-6109 "O" Ring Add To Enquiry Basket
79 33866-512 Spindle Add To Enquiry Basket
94 32341-303 21T Oil Pump Wheel Add To Enquiry Basket
100 25532-7051 Bulseye Indicator Add To Enquiry Basket
103 25122-6102 "O" Ring Add To Enquiry Basket
107 25122-6091 "O" Ring Add To Enquiry Basket
109 25142-2501 Oil Seal Add To Enquiry Basket
112 34772-135 Flange Boss Add To Enquiry Basket
114 34274-502 Spindle Nut Add To Enquiry Basket
124 38413-902 Filler Cap Add To Enquiry Basket
129 489 Filter Element (New) Add To Enquiry Basket
129 444 Filter Element (Old) Add To Enquiry Basket
129 18489 Filter Unit Complete Add To Enquiry Basket
132 32122-414 Pulley Add To Enquiry Basket
140 A48 External Belt Add To Enquiry Basket
