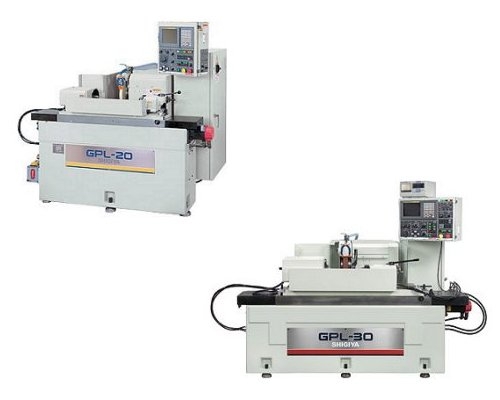

Superior CNC Control and Variety of optional Accessories compliment customisation for specialised applications. The GPL-20 allows any combination of options to provide highly accurate grindings.
The GPL-30 series CNC Cylindrical Grinders are a new concept of machines aiming for flexibility, with a large selection of options to customise and meet individual customer's requirements.
This CNC cylindrical grinder provides simultaneous 2-axis control of the plain wheelhead (X-axis) and table traverse (Z-axis) type.
Optional Specifications
Machine full cover enclosure.
Internal grinding attachment.
Optional Equipment
Wheel balancing stand.
Wheel balancing arbour.
Spare wheel flange.
Radius Dresser.
Diamond tool holder.
Diamond tool.
Diamond tool holder for both sides dressing.
Table swivel measuring device.
2 Point Steady.
3 Point Steady.
Chuck.
Work driving dog set.
| SHIGIYA GPL Series - Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| MODEL | MODEL | ||||||||
| GPL-20 | GPL-30 (GPC-40) | ||||||||
| 25 | 50 | 40 | 60 | 100 | 150 | 200 | |||
| CAPACITY | |||||||||
| Swing over Table | dia 200mm | dia 300 (dia 410) mm | |||||||
| Between Center Distance | 250mm | 500mm | 400 (370)mm | 600 (570) mm | 1000 (970)mm | 1500 (1470)mm | 2000 (1970)mm | ||
| Max Grind O.D. | dia 200mm | dia 300 (410) mm | |||||||
| Max Workmass (Between Centres) | 20kg | 150kg | |||||||
| Form Dress | Yes | Yes | |||||||
| WHEELHEAD | |||||||||
| Swivel Angle | Non Swivel | Non Swivel | |||||||
| Wheel size O.D. x W | dia 355 x 32 mm | dia 405 x 50 mm | |||||||
| Minimum Input Increment | 0.0001mm | 0.0001mm | |||||||
| WORKHEAD | |||||||||
| Type | Dead / Live Spindle. Swivel base. |
Dead / Live Spindle. Swivel base. |
|||||||
| Spindle Centre Taper | MT No 3 | MT No 4 | |||||||
| TABLE | |||||||||
| Swivel Angle C.C.W | |||||||||
| Swivel Angle C.W | |||||||||
| Minimum Input Increment | 0.0001mm | 0.0001mm | |||||||
| CONTROL SYSTEM | |||||||||
| CNC | Fanuc 0i | Fanuc 0i | |||||||
| Shigiya Conversational Programming | Yes | Yes | |||||||
| * Full Specifications available on request * | |||||||||
