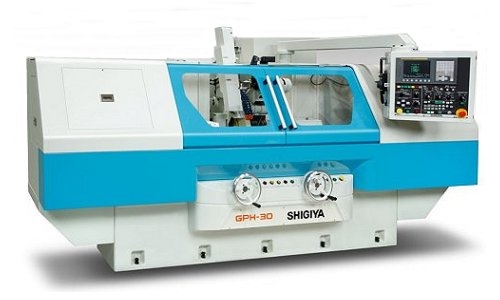

Handwheels for feeding of wheelhead and table are incorporate to this CNC cylindrical grinder.
For the operator, it allows the controls to feel like an advanced manual operation machine.
The GPS series is a technically advanced 2-Axis conversational CNC Cylindrical Grinder. The machine design keeps in mind the flexibility to allow for a wide range of grinding applications. Utilising a more economical control system and machine base design, it retains the high precision and control of a CNC machine while the attractive price compares to that of a conventional hydraulic machine.
Handwheels for feeding of wheelhead and table are incorporate to this CNC cylindrical grinder.bFor the operator, it allows the controls to feel like an advanced manual operation machine.
This CNC cylindrical grinder provides simultaneous 2-axis control of the plain wheelhead (X-axis) and table traverse (Z-axis) type. In addition, handles are provided for manual-control feel of operation, providing an advantage when dealing with small lots of a wide variety of products.
Optional Specifications
Machine full cover enclosure.
Internal grinding attachment.
Optional Equipment
Wheel balancing stand.
Wheel balancing arbour.
Spare wheel flange.
Radius Dresser.
Diamond tool holder.
Diamond tool.
Diamond tool holder for both sides dressing.
Table swivel measuring device.
2 Point Steady.
3 Point Steady.
Chuck.
Work driving dog set.
| SHIGIYA GPH-30 (GPS-40) Series - Specifications | ||||
|---|---|---|---|---|
| MODEL | ||||
| 40 | 60 | 100 | 150 | |
| CAPACITY | ||||
| Swing over Table | dia 300 (dia 410) mm | |||
| Between Center Distance | 400 (370)mm | 600 (570) mm | 1000 (970)mm | 1500 (1470)mm |
| Max Grind O.D. | dia 300 (325) mm | |||
| Max Workmass (Between Centres) | 150kg | |||
| Form Dress | Yes | |||
| WHEELHEAD | ||||
| Swivel Angle | Non Swivel | |||
| Wheel size O.D. x W | dia 405 x 50 mm | |||
| Minimum Input Increment | 0.0001mm | |||
| WORKHEAD | ||||
| Type | Dead / Live Spindle. Swivel base. |
|||
| Spindle Centre Taper | MT No 4 | |||
| TABLE | ||||
| Swivel Angle C.C.W | 11° | 9° | 8.5° | 5° |
| Swivel Angle C.W | 0° | 0° | 0° | 0° |
| Minimum Input Increment | 0.0001mm | |||
| CONTROL SYSTEM | ||||
| CNC | Fanuc 0iT | |||
| Shigiya Conversational Programming | Yes | |||
| * Full Specifications available on request * | ||||
