The GPC-20 is a wheelhead traverse type CNC Compact Angular Slide Cylindrical Grinder which offers accurate grinding in small work pieces with small diameters.

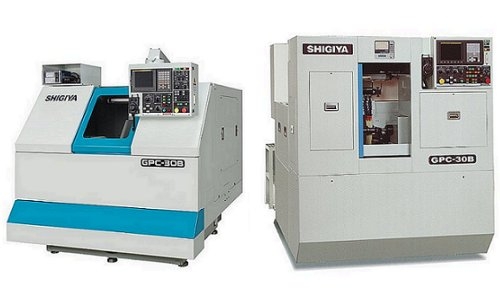

The GPC-30(40)B is only 1.95 metre (or 6ft 5in) machine width. Diverse grind and dress patterns readily accessible in conversational mode. Easy floor-layout for flexible production requirements and quickly adaptable to sophisticated automation.
This is an angular slide wheelhead traverse type CNC angular cylindrical grinder with simultaneous 2-axis control.
Optional Equipment
Machine full cover enclosure
Rotary wheel dressing device
Several kinds of loading/unloading device
| SHIGIYA GPC Series - Specifications | ||||
|---|---|---|---|---|
| MODEL | ||||
| GPC-20 | GPC-30 (GPC-40) | |||
| 10 | 25 | 40 | ||
| CAPACITY | ||||
| Swing over Table | dia 200 mm | dia 300 (dia 410) mm | ||
| Between Center Distance | 100 mm | 250 mm | 400 mm | |
| Max Grind O.D. | dia 30 mm | dia 300 (410) mm | ||
| Max Workmass (Between Centres) | 20kg | 150kg | ||
| Form Dress | Yes | Yes | ||
| WHEELHEAD | ||||
| Swivel Angle | Non Swivel | Non Swivel | ||
| Wheel size O.D. x W | dia 355 x 38 mm | dia 510 x 32~75 mm | ||
| Minimum Input Increment | 0.0001mm | 0.0001mm | ||
| WORKHEAD | ||||
| Type | Dead / Live Spindle. Swivel base. |
Dead / Live Spindle. Swivel base. |
||
| Spindle Centre Taper | MT No 3 | MT No 4 | ||
| TABLE | ||||
| Swivel Angle C.C.W | 0.2° | Small amount | ||
| Swivel Angle C.W | 0.2° | Small amount | ||
| Minimum Input Increment | 0.0001mm | 0.0001mm | ||
| CONTROL SYSTEM | ||||
| CNC | Fanuc 0i | Fanuc 0i | ||
| Shigiya Conversational Programming | Yes | Yes | ||
| * Full Specifications available on request * | ||||
