Stock No - A2541
Year -
Serial No- BO 14115
Cone angle centre hole - 60 degrees
Maximum diameter centre holes - 24 mm
Maximum diameter of abrasive lap - 25 mm
Spindle vertical feed - 50 mm
Spindle speed - low range - 745 r.p.m.
Spindle speed - high range - 1420 r.p.m.
Distance from spindle centre to column - 165 mm
Maximum length of work - 1016 mm
Driving motor - 0.55 kw
Driving motor speed - 1425 r.p.m.
Overall height of machine - 1880 mm
Electrics: Suitable for operation on 380/415 volts 3hp 50H
Colour - Jones & Shipman Blue
Delivery - 7-10 days
SOLD
For more details and price -
Please contact us using our Contact Form or by
Telephone: +44 (0)24 76 375442

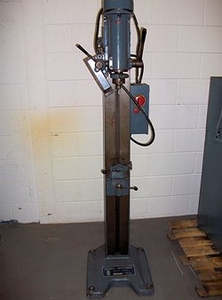

Jones & Shipman 1600 Cone Centre Lapping Machine For more information please call us on 02476 375442 for more details.
For specifications for Jones & Shipman 1600 Cone Centre Lapping Machine please call 02476 375442 for more details.
