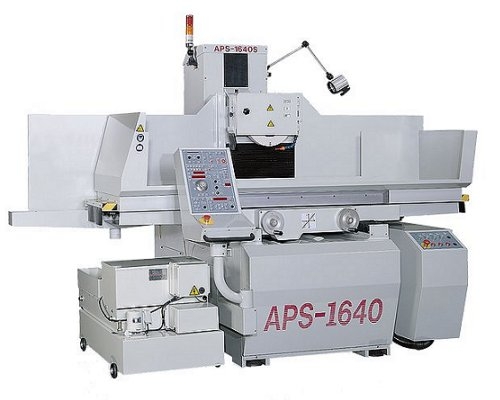

APS Machines 1224 - 1640

APS Machines 1224 - 1640

APS Machines 1224 - 1640

High Capacity Range

Model Maximum Grinding
APS 1224 300 x 600
APS 1228 300 x 700
APS 1632 450 x 800
APS 1636 450 x 900
APS 1640 450 x 1000
Enquire Now
General Information

APS Machines 1224 - 1640 Information

The new APS Precision Surface Grinding Machine

This Precision surface grinder has been developed & designed in the UK to European standards and requirements. It offers a cost effective solution to your precision toolroom grinding needs. Built with superior rigid construction for greater stock removal and accuracy. The machine carries a two year parts & labour warranty with a planned maintenance service contract.

Its robust construction, low friction saddle with wide support, ensures high quality and a rigid stable workstation. The vertical slide is constructed using highly sensitive, linear bearing guideways. They support a Heavy Duty direct drive ball bearing spindle.

PLC Controls

  • Instrument quality control panel, ergonomically positioned, and has a touch sensitive operation.

  • 2 rate hand pulse generator with 2 rates of intermittent or continuous down feeds.

  • PLC controlled to give logical and clear, sophisticated cycles.

  • Both metric & imperial measurements are selectable. Controls for powered magnetic chuck and coolant.
PLC Controls

CNC Controls

  • All Models are also available with Fanuc CNC controls, allowing for more complicated grinding applications, including multiple pitching, sophisticated profiling and 3 axis interpulation.
CNC Controls

APS - P Model Surface Grinder

The New APS - P models have all of the above and also includes -

  • Servo driven Ballscrew on Crossfeed & Downfeed.
  • Hydraulic table with external tank producing minimum heat.
  • Crossfeed digitised reversal points accurate to within 1 micron.
  • Encoder feedback Digital Readout (DRO) on Crossfeed & Downfeed.
  • Intermittant & Continuous reversing saddle.
  • Intermittant & Continuous 2 rate downfeed with selectable retract.
  • Coolant system and Service fittings.

APS - S Model Surface Grinder

The Revolutionary APS - S has all of the above with the additional -

  • All 3 Axis are servo driven through high accuracy, super precision ground ballscrews.
  • Hydraulics removed completely to give the ultimate in thermal stability.
  • Table & Crossfeed digitised reversal points accurate to within 1 micron.
  • Customised Software to suit your specific applications.
  • Creep feed Software and guarding available.

APS Additional Equipment

PG Optidress "E" (NEW) with FACTSTOR 2, 4-Axis digital readout.
- (Including Wheelguard, Coolant modifications, Adaptor plate and fitting to machine)

PG Optidress - not "E" type. (Rebuilt and with 12 months warranty).
- (Including Wheelguard, Coolant modifications, Adaptor plate and fitting to machine)

Heidenhein linear scale feedback Digital Readout (DRO) to both Crossfeed & Downfeed.

Dust extractor DCE Type M15.

Infinitely variable speed drive to wheelhead.

Electromagnetic Chuck with variable holding power & automatic demagnetisation.

Straight line dressing attachment with compensation.

4kw Wheelhead Motor (in lieu of standard).

Machine Specifications

APS Machines 1224 - 1640 Machine Specifications



APS Small / Medium Toolroom Surface Grinder

Model APS-618 APS-818
Table Capacity 150x450mm 200x450mm
Max distance from spindle
centre to table surface
95-510mm 95-510mm
Spindle motor 2HPx2P 2HPx2P
Grinding wheel 205x13x31.75 205x19x31.75
Weight (approx) 1600kgs 1650kgs
Floor space 2110x2400x1752 2110x2400x1752



APS High Capacity Toolroom Surface Grinder

Model APS-1224 APS-1228 APS-1632 APS-1636 APS-1640
Table Capacity 300x600mm 300x700mm 400x800mm 400x900mm 400x1000mm
Max distance from spindle
centre to table surface
700mm 700mm 700mm 700mm 700mm
Spindle motor 5HPx4P 5HPx4P 7.5HPx4P 7.5HPx4P 7.5HPx4P
Grinding wheel 305/355x50x127 305/355x50x127 305/355x50x127 305/355x50x127 305/355x50x127
Weight (approx) 3200kgs 3200kgs 4000kgs 4000kgs 42000kgs
Floor space 3240x2500x2092 3240x2500x2092 3300x2780x2092 3350x2780x2092 3400x2780x2092



Please contact us for full specifications and brochure.
